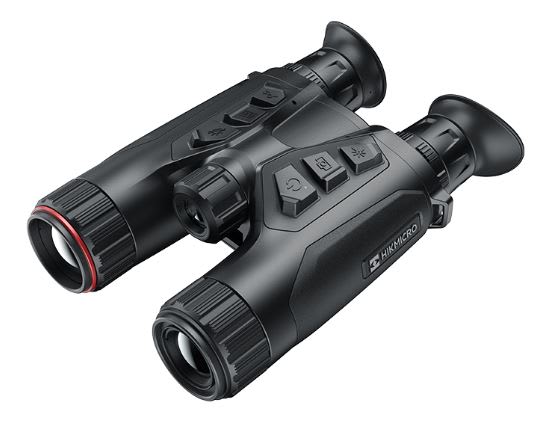

HIKMICRO Habrok Multi-spectrum Binocular

HH35L / HH35LN

HH35L & HH35LN offer the perfect all-in-one solution for both field and hunting hunters. With its 384 thermal detector and impressive 4x magnification, you won't miss any detail. No matter the distance, you can trust the LRF to provide precise measurement up to 1000m.



HQ35L / HQ35LN

With a powerful combination of a 640 thermal detector,

2560 CMOS detector, a 35mm/F1.0 lens with a basic 3x magnification, HQ35L & HQ35LN deliver unparalleled accuracy and clarity, suitable for a wide range of hunting scenarios.

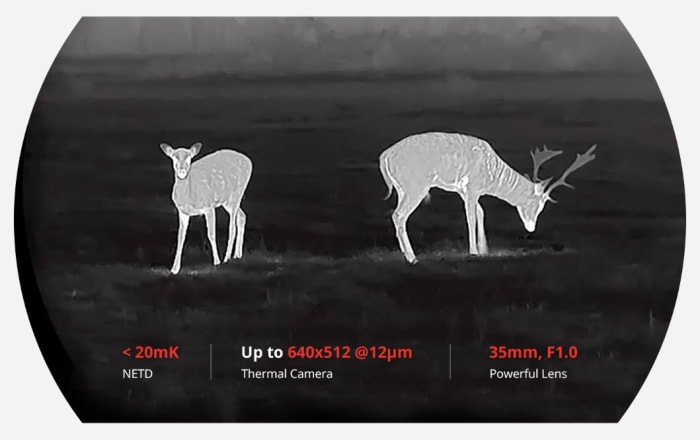

Ultra Clear Image, Impressive Detail Recognition

The high sensitivity (NETD<20mK) thermal detector of the HIKMICRO HABROK multi-spectrum binocular enables easy and clear identification of objects, details, and backgrounds in various weather and lighting conditions.



2560x1440 HD Resolution Digital Camera

HABROK’s powerful 0.001Lux Starlight Camera captures subjects in a bright and vivid image in the daytime, as well as delivering superb detail in low-light conditions.

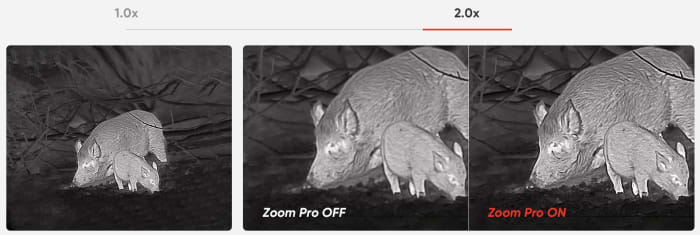

Self-developed Image Algorithm Brings Stunning Image Quality

Based on extensive analysis of thermal hunting images, HIKMICRO's self-developed image algorithm Zoom Pro gives HABROK ultra-clear images with impressive details and less pixilation, especially in digital zoom.

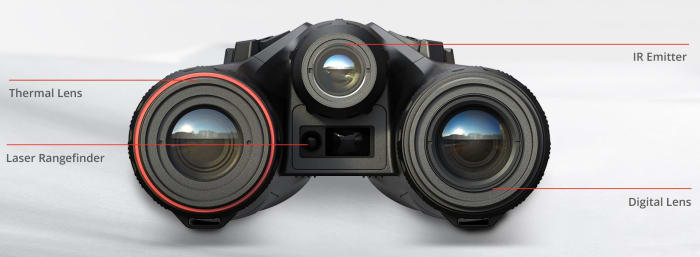

All-in-One Design Built for Various Scenarios

In combination with a thermal camera, digital day & night camera, IR Emitter, and a Laser Rangefinder module, HIKMICRO HABROK is built for all day and night games.



IR Emitter: The built-in IR emitter with adjustable beam angle allows you to use the device in total darkness. (Optional for 850nm or 940nm)

LRF: The integrated laser rangefinder with a range of up to 1,000m @± 1m accuracy enables users to precisely measure distances and make informed decisions.



Classic Binocular Compact Design

HIKMICRO multi-spectrum binocular HABROK maintains the classic daytime binocular appearance.
Besides, HABROK fits comfortably in hand, resulting from its lightweight <780g, exemplary ergonomic design, and intuitive button arrangement.

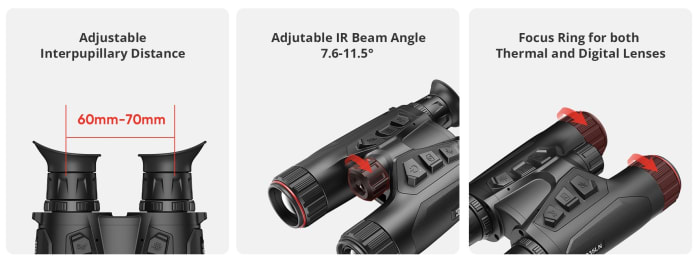

Comfortable Visual Experience Matters

Both lenses support focus adjustment. The interpupillary distance is also adjustable from 60mm to 70mm to satisfy different users’ demands. The 1920x1080 sub-round 0.49’’ large OLED display unlocks new and comfortable observing perspectives, delivering an immersive hunting experience.



Robust Magnesium Alloy Housing Design For a Better Durability

The magnesium alloy design results in a robust structure, allowing HIKMICRO HABROK to stand up to harsh environmental conditions and extensively expand its durability.



Smart Auto Screen off Function to Save Battery Energy

The integrated algorithm automatically detects HIKMICRO HABROK’s exact position and activates the auto screen-off function accordingly -- stand by automatically at a lateral tilt of 75°as well as at a downward or upward tilt of 70°.



More Advantages

- Integrated hotspot module makes sight app as a second display

- Local album for convenient viewing

- Smart IR to Avoid Overexposure

- IP67 Waterproof Rated



Specifications



Product Model	HQ35L	HQ35LN
Thermal Module
Image Sensor Max. Resolution Frame Rate Pixel Interval Response waveband NETD Lens (focal length) Detection Range Focus Mode Field of View(H × V), Degrees / m @100m Min. Focusing Distance Magnification	VOx Uncooled Focal Plane Arrays 640 x 512 50Hz 12μm 8μm to 14μm Less than 20 mK (@25°C),F#=1.0 35mm, F1.0 1800m Focus Ring 12.5°×10.1°/ 22.0m×17.6m 3.5m 3.0x-24.0x (8x)	VOx Uncooled Focal Plane Arrays 640 x 512 50Hz 12μm 8μm to 14μm Less than 20 mK (@25°C),F#=1.0 35mm, F1.0 1800m Focus Ring 12.5°×10.1°/ 22.0m×17.6m 3.5m 3.0x-24.0x (8x)
Optical Module
Image Sensor Max. Resolution Min. Illumination Field of View (H × V), Degrees/m @100 m Focal Length Min. Working Distance Viewing Range at Night Magnification Focus Mode Smart IR	1.88'' Progressive Scan CMOS 2560 x 1440 0.001 lux @ (F1.0 , AGC On) 13.9°x7.8° / 24.4m × 13.6m 31mm, F1.2 3m 400m 2.9x-23.2x（8x) Focus Ring Yes	1.88'' Progressive Scan CMOS 2560 x 1440 0.001 lux @ (F1.0 , AGC On) 13.9°x7.8° / 24.4m × 13.6m 31mm, F1.2 3m 350m 2.9x-23.2x（8x) Focus Ring Yes
Image Display
Display Contrast Adjustment Brightness Adjustment Palettes FFC (Flat Field Correction) Mode Exit Pupil Eye Relief Diopter (Range) Tone Adjustment Zoom Pro	0.49 inch, OLED, 1920 ×1080 Yes Yes Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto Auto, Manual, External Correction 8mm 15mm -5D~+3D Cold, Warm Yes	0.49 inch, OLED, 1920 ×1080 Yes Yes Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto Auto, Manual, External Correction 8mm 15mm -5D~+3D Cold, Warm Yes
General
Protection level Weight Dimension Working Temperature Interpupillary Adjustment Range Mounting Adapter	IP67 780g without batteries 138.2 mm × 68.4 mm × 212.4 mm (5.4" × 2.7" × 8.4") -30℃ ~ +55℃ 60 mm to 70 mm 1/4“-20-UNC	IP67 780g without batteries 138.2 mm × 68.4 mm × 212.4 mm (5.4" × 2.7" × 8.4") -30℃ ~ +55℃ 60 mm to 70 mm 1/4“-20-UNC
System
Record Video Capture Snapshot Hotspot GPS Digital Magnetic Compass Standby Mode Storage PIP Hot Track Audio Recording Local Album	Yes Yes Yes Yes Yes Yes Built-in EMMC (64 GB) Yes Yes Yes Yes	Yes Yes Yes Yes Yes Yes Built-in EMMC (64 GB) Yes Yes Yes Yes
Power Supply
Battery Type Battery Operating Time Type-C Power Supply	Replaceable and Rechargeable Li-ion Battery ≥6h (25 °C, with hotspot off) 5V DC, 2 A Supports External Power Supply	Replaceable and Rechargeable Li-ion Battery ≥6h (25 °C, with hotspot off) 5V DC, 2 A Supports External Power Supply
Laser Rangefinder
Safety Class for Laser Wavelength Max. Measuring Range Measurement Accuracy Min. Measuring Range	Class 1 905nm 1000m ±1m 10m	Class 1 905nm 1000m ±1m 10m
Infrared Illuminator
Emitter IR Wavelength Beam Angle	LED 850nm Adjustable 7.6-11.5°	LED 940nm Adjustable 7.6-11.5°



*Legislation governing firearms and hunting sets out special conditions for the purchase, ownership, and use of thermal imaging devices. Please always check national provisions and regulations before purchase or use.
