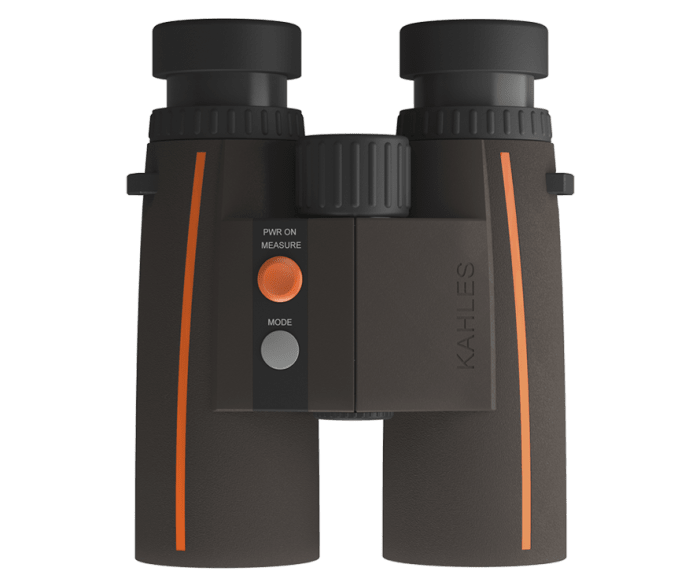

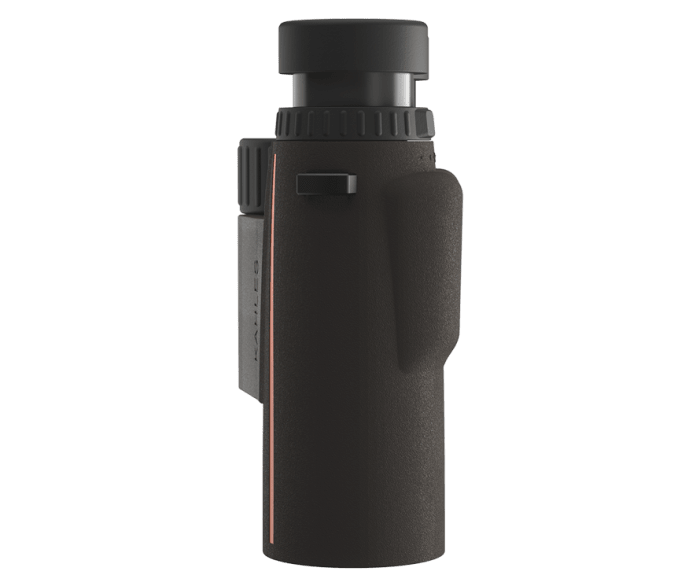

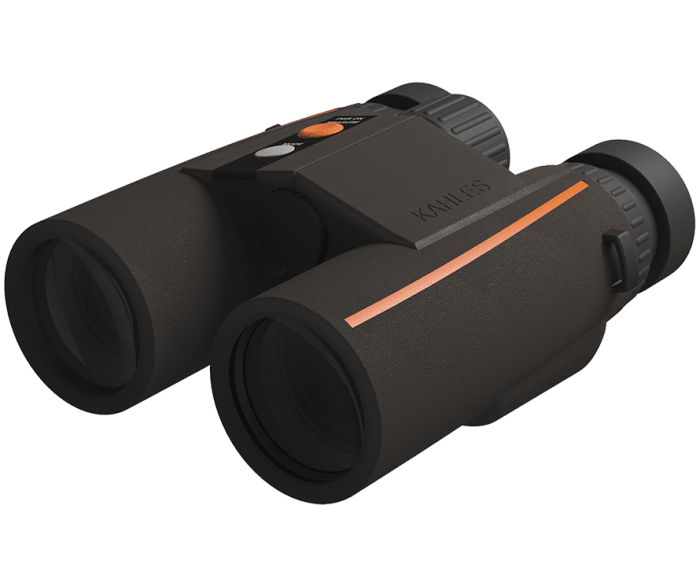

Kahles HELIA 42 RF

Kahles HELIA 42 RF

NEW VERSION

Available in 8x42 or 10x42

The lightweight and ergonomic HELIA RF perfectly combines high performance optics with intuitively simple and reliable targeting up to 1,500 m. With innovative Waldkauz ® loden cover, scan mode and patented EAC (Enhanced Angle Compensation) function.

• Easy and reliable targeting up to 1,500 m
• EAC-function (Enhanced Angle Compensation) for angle correction (patented)
• Intuitive simple menu navigation
• Premium-quality OLED display with five manual brightness settings and display in meter or yards
• Scan mode for continuous measurement
• Extra long battery lifetime ~ 3,000 measurements
• Lightweight and ergonomic binocular with innovative Waldkauz ® loden protective cover and leather strap

  HELIA 42 RF	8x42	10x42
  Magnification	8	10
  Objective lens diameter (mm)	42	42
  Eye relief (mm)	18	16
  Exit pupil diameter (mm)	5,3	4,2
  Pupil distance (mm)	58 - 73	58 - 73
  Twilight factor (ISO 14132-1)	18,3	20,5
  Field of view (m/1.000m)	122	107
  Field of view (°)	7,0	6,1
  Field of view apparent (°)	56	61
  Near focus (m)	5	5
  Diopter compensation (dpt)	± 4	± 4
  Measure range - standard (m)	5 - 1.500	5 - 1.500
  Measure range - LR (m) easy to measure targets	up to 4.500	up to 4.500
  Range-finding accuracy (m)	+/- 1 up to 100	+/- 1 up to 100
  	+/- 2 up to 1.000	+/- 2 up to 1.000
  	+/- 0,5% over 1.000	+/- 0,5% over 1.000
  Display type	OLED	OLED
  Brightness levels	5	5
  Measurement duration	1 s	1 s
  Display Auto-off	5 s	5 s
  Adjustment position twist-in eye cups	4	4
  Waterproof (nitrogen filling)	√	√
  Height x Width x Depth approximately (mm)	145 x 132 x 73	145 x 132 x 73
  Weight (g)	900	900
  m/yds display	√	√
  Laser category	1M	1M
  Single measurement	√	√
  Scan measurement	√	√
  Angle correction	EAC-Function	EAC-Function
  LR measurement	√	√
  Temperature measurement	√	√
  Air pressure measurement	√	√
  Battery type	CR2 Lithium (3V DC)	CR2 Lithium (3V DC)
  Battery lifetime	~ 4.000 range cycles	~ 4.000 range cycles
  Guarantee	10 years	10 years
  Guarantee electronics	2 years	2 years
  Operating temperature mechanical (°C)	-10 / +55	-10 / +55
  Operating temperature electronical (°C)	-10 / +55	-10 / +55
  Accessories (inclusive)	Ocular and objective cover, Carrying strap with quick release fastener	Ocular and objective cover, Carrying strap with quick release fastener

Part Number: 20024, 20025

---
