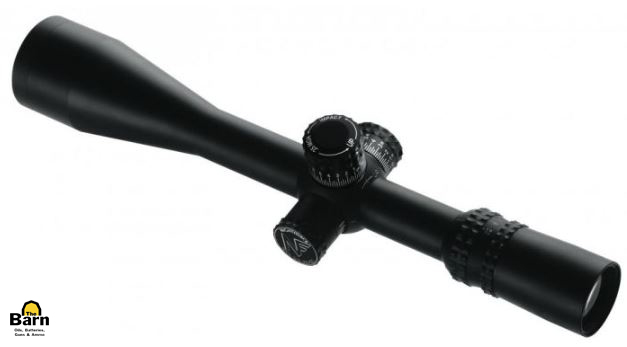

Nightforce NXS 5.5-22x50 ZeroStop™ Second Focal Plane

Nightforce NXS 5.5-22x50 ZeroStop™ Second Focal Plane

SPECIFICATIONS

• Focal Plane: Second
• Magnification Range: 5.5-22x
• Objective lens diameter: 50mm
• Tube diameter: 30 mm/1.18 in
• Internal adjustment range (MOA/Mil): e: 100 MOA, w: 60 MOA, e: 27.3 Mil, w: 16.4 Mil
• Click value: .250 MOA
• Calibrated Ranging Power: 22x
• Parallax adjustment: 50 yd–∞
• Exit pupil diameter: 5.5x: 9.1 mm, 22x: 2.3 mm
• Eye relief: 95 mm/3.7 in
• Field of view @100 yards/100 meters: 5.5x: 17.5 ft, 22x: 4.7 ft, 5.5x: 5.3 m, 22x: 1.4 m
• Objective outer diameter: 59 mm

Part Numbers: C433, C505

---
