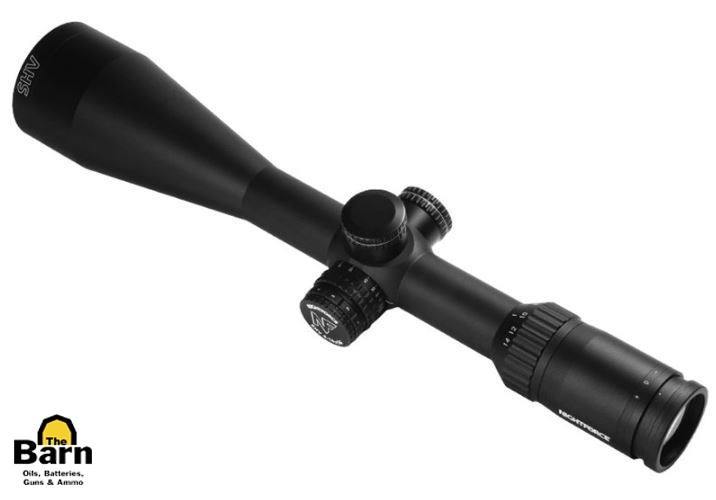

Nightforce SHV 3-10x42mm Second Focal Plane

Focal Plane	Second
Magnification Range	3-10x
Objective lens diameter	42mm
Tube diameter	30 mm/1.18 in
Internal adjustment range (MOA/Mil)	e: 100 MOA w: 70 MOA e: 27.3 Mil w: 19.1 Mil
Click value	.250 MOA
Calibrated Ranging Power	14x
Parallax adjustment	25 yd–∞
Exit pupil diameter	4x: 12.0 mm 14x: 3.6 mm
Eye relief	80-90 mm/3.15-3.54 in
Field of view @100 yards/100 meters	4x: 24.9 ft 14x: 7.3 ft 4x: 7.59 m 14x: 2.23 m
Objective outer diameter	65 mm
Eyepiece outer diameter	43 mm
Overall length (inches/mm)	14.8 in/376 mm
Weight (ounces/grams)	26.9 oz/763g* 28.5 oz/808g**
Mounting length (inches/mm)	5.79 in/147 mm
Front/Rear Mounting Length	2.05 in /2.00 in
PTL (Power Throw Lever)	Accessory
Reticles available	IHR™ MOAR™
Illumination	Optional
	* Non-Illuminated ** Illuminated
Elevation Feature	Capped, Finger Adjustable

Part Numbers: C592, C612, C610, C562

Product Code: C592, C612, C610, C562

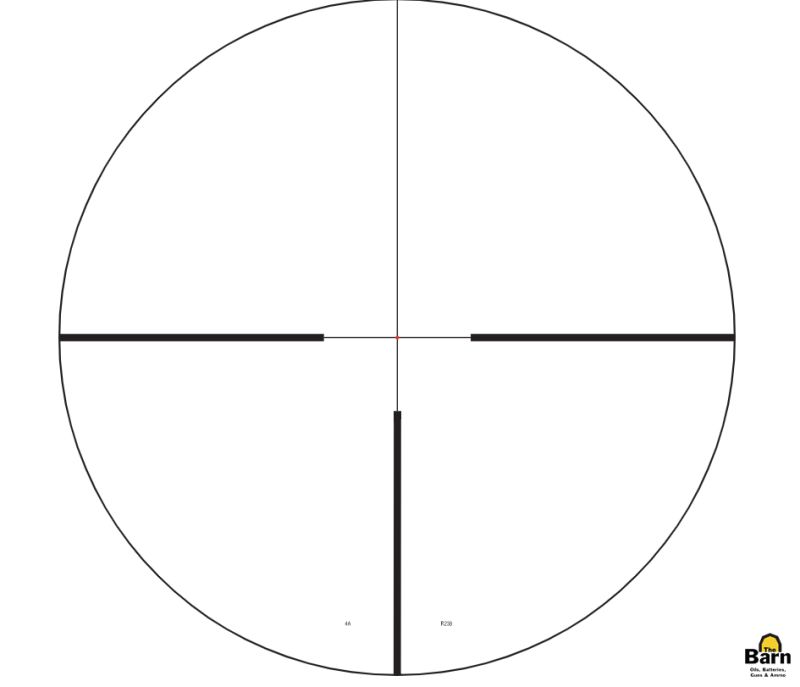

$1,410.00 C612 - .250MOA - Illuminated - 4A

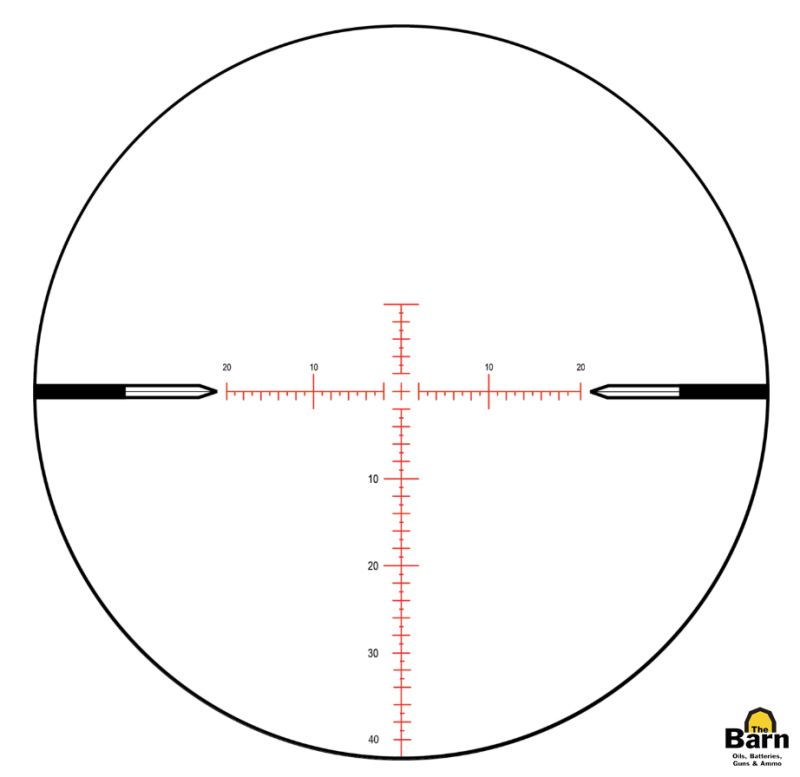

$1,419.00 C610 - .250MOA - Illuminated - MOAR™
