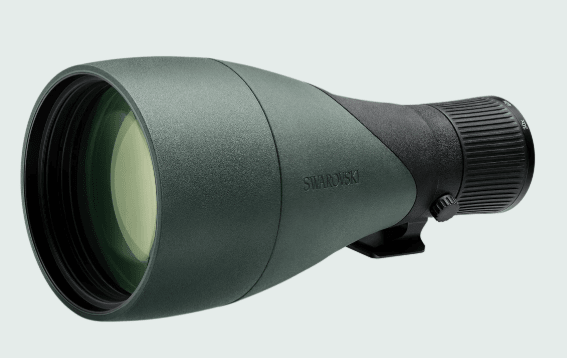

Swarovski ATX/STX OBJECTIVE MODULE 95mm
Swarovski ATX/STX OBJECTIVE MODULE 95mm
A NEW ERA IN THE HISTORY OF SPOTTING SCOPES
In those crucial hunting moments, the modular ATX / STX / BTX spotting scope system provides maximum functionality. The objective lens can be changed to complement individual preferences and forms of hunting. The device is operable with only one hand and, if necessary, it can be disassembled and easily transported. Its optical brilliance is based on SWAROVISION technology and enables you to see perfect images at long range.
SWAROVISIONSWAROCLEAN

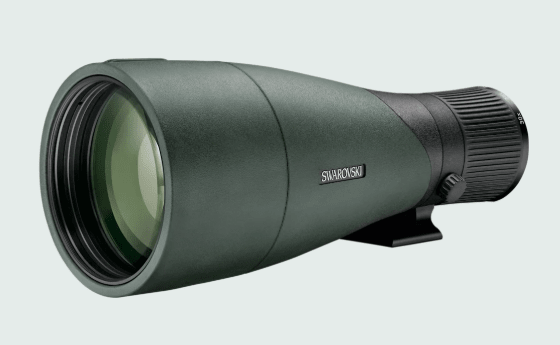

95mm objective module
The 95 mm objective module offers outstanding detail resolution. This device even pushes optical tests to their limits and it is the ultimate benchmark for those who want to see even tiny details in razor-sharp focus.
|
Magnification
|
25-60x
|
|
Effective objective lens diameter (mm)
|
65
|
|
Exit pupil diameter (mm)
|
2.6-1.1
|
|
Eye relief (mm)
|
20
|
|
Field of view (ft/1000 yds / m/1000 m)
|
124-68 ft / 41-23 m
|
|
Field of view (degrees)
|
2.37-1.30
|
|
Field of view, apparent (degrees)
|
57-71
|
|
Shortest focusing distance (ft / m)
|
6.9 / 2.1
|
|
Diopter correction at ∞ (dpt)
|
> 5
|
|
Light transmission (%) total product
|
86
|
|
Objective filter thread
|
M 67 x 0.75
|
|
Focal length with TLS APO (mm)
|
750-1800
|
|
Length (in / mm)
|
8.1 / 207
|
|
Weight (oz / g)
|
27.3 / 775
|
|
Functional temperature
|
-13 °F to +131 °F (-25 °C / +55 °C)
|
|
Storage temperature
|
-22 °F to +158 °F (-30 °C / +70 °C)
|
|
Submersion tightness
|
13 ft / 4 m water depth (inert gas filling)
|
Swarovski ATX/STX OBJECTIVE MODULE 95mm
Product code: 1171946
